| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | SAFEGAS |
| ได้รับการรับรอง: | ATEX/EMC/IECEX |
| หมายเลขรุ่น: | Micmeta |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 |
| ราคา: | โปร่ง |
| รายละเอียดการบรรจุ: | กล่อง (22*16*11 ซม.) |
| เวลาการส่งมอบ: | 3 วันทำงาน |
| เงื่อนไขการชำระเงิน: | ที/ที |
| สามารถในการผลิต: | 3,000 ชิ้นต่อเดือน |
| ชนิดก๊าซ: | CL2, CLO2 | วิธีการทำงาน: | การสุ่มตัวอย่างการแพร่กระจาย |
|---|---|---|---|
| เวลาตอบสนอง (T90): | ≤30 วินาที | แพลตฟอร์มการสอบเทียบ: | สถานีเชื่อมต่อเสริมเพื่อทำการสอบเทียบและการทดสอบการชนรายวัน |
| แบตเตอรี่: | แบตเตอรี่ลิเธียม, แบตเตอรี่แบบชาร์จไฟได้ 3.7V | การส่งสัญญาณไร้สาย (อุปกรณ์เสริม): | บลูทูธ / ลอร่า |
| ชั่วโมงการทำงาน: | ประมาณ 24 ชั่วโมง | เวลาในการชาร์จ: | น้อยกว่า 6 ชั่วโมง |
| ได้รับการรับรอง: | ATEX, CN, IECEX | เกรดป้องกัน: | IP66/IP68 |
| น้ำหนัก (พร้อมแบตเตอรี่ภายใน): | 240 กรัม | บันทึกข้อมูล: | 1,000 ชุด |
| บันทึกเหตุการณ์: | 100 ชุด | ||
| เน้น: | IECEX Certificated Multi Gas Detector,Wireless Transmission Gas Analyzer,Minisize Gas Concentration Meter |
||

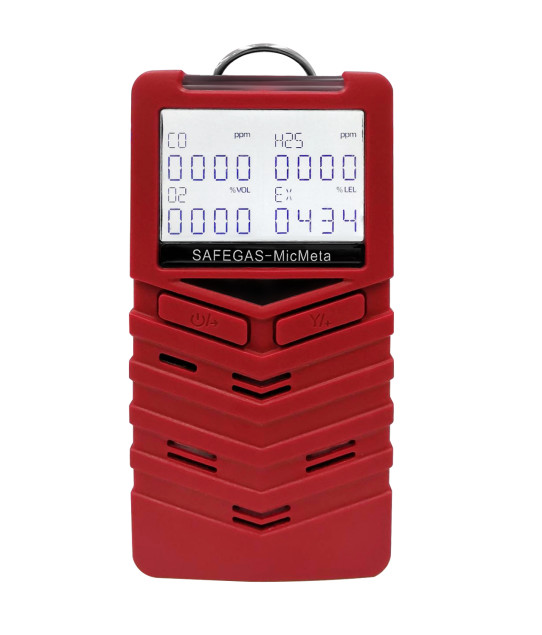

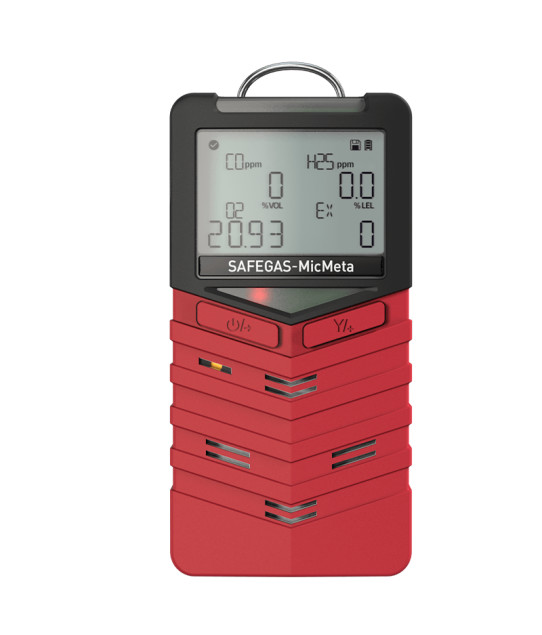

Compact explosion-proof gas detector with wireless transmission capability for chlorine and chlorine dioxide gas concentration monitoring.
The MicMeta multi-gas detector features IP66/IP68 protection and can simultaneously detect 1-4 gases. With conventional CO and H2S sensors, it can monitor up to 5 gases concurrently.
This detector holds three major explosion-proof certifications: IECEX, ATEX, and China Explosion-proof, with an explosion-proof rating of Ex ia IICT4 Ga/Ex ia I Ma, making it suitable for use in both Zone 0 and Zone 1 hazardous areas.
Equipped with an LCD screen supporting Chinese/English language switching and gas unit conversion. Features two-level sound and light alarms with customizable settings, optional PC software for data download, and docking station for bump testing, calibration, configuration, and data recording.
| Parameter | Specification |
|---|---|
| Sampling Method | Diffusion suction |
| Gas Type | CL2 and CLO2 |
| Measure Range | Customizable, CL2 0-200PPM, CLO2 0-50PPM |
| Resolution | 0.1PPM, 1PPM |
| Response Time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on specific sensor) |
| Language | Chinese/English |
| Automatic Functions | Auto-test, calibration, auto-zero, MAX, MIN, STEL, TWA values |
| Unit Conversion | PPM and mg/m³ switchable with automatic concentration conversion |
| Display | Segment code LCD display |
| Calibration Platform | DKM-MicMeta docking station (optional) |
| Data Recording | 1000 sets data records and 100 sets events records |

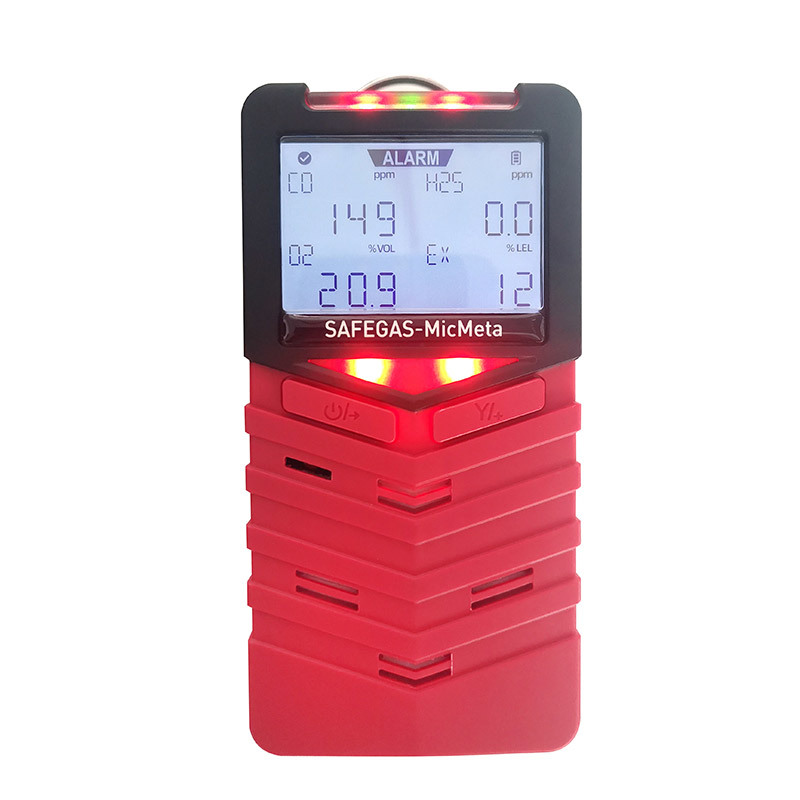

| Alarm System | 95dB buzzer (@30cm), vibration, flashing red bar, on-screen status indication, alarm lock; Diagnostic, battery undervoltage, man down alarms; All sensor alarm values settable |
| Battery | 3.7V rechargeable lithium battery, 2300mAh capacity |
| Working Hours | Standby time 18h, charging time <6h |
| Wireless Transmission | Bluetooth (optional), Lora (optional) |
| Explosion-proof Grade | IECEx: Ex ia IIC T4 Ga, Ex ia I Ma ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma |
| EU Regulations | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection Grade | IP66/IP68 |
| Working Temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental Pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
The MicMeta detector can monitor 1-5 gases simultaneously, including various combustible and toxic gases.
As a professional gas detector manufacturer, we control the entire process from design and R&D through production and sales to ensure consistent product quality. We hold more than 100 independent intellectual property patents in design and development.
Our production features skilled technical workers and complete industrial lines, enabling full control over manufacturing and quality assurance throughout the process.
Our professional R&D department has approximately 25 years of experience in the gas detection industry, providing customers with professional technical support and after-sales service.
We implement a strict quality management system with a core principle of quality first. This commitment has earned us ISO9001 and ISO14001 certifications, ensuring safe and environmentally friendly products.
Our products hold IECEx and ATEX explosion-proof certifications, making them suitable for hazardous areas including mines, underground facilities, and oil plants. We are the first and currently the only manufacturer in China to obtain these certifications.
Core components, including ICs and sensors, utilize imported brands like Honeywell, CITY and Alpha, enhancing product accuracy, stabilizing service life, ensuring detection precision, and protecting customer safety.
Our complete product line and stable inventory ensure fast delivery. Orders under 10 units typically ship within 3 days, while quantities exceeding 100 units are delivered within half a month under normal circumstances.
A gas detector is an instrument for detecting gas leakage concentrations, including portable gas detectors and fixed gas detection systems.
Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
PPM represents the volume concentration of gas, meaning the volume of pollutants contained in one million volumes of air. For example, an ammonia concentration of 30ppm indicates 30 volumes of ammonia in one million volumes of air.
