| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | Safegas |
| ได้รับการรับรอง: | ATEX/IECEx/EMC |
| หมายเลขรุ่น: | มินิต้า |
| เอกสาร: | MiniMeta Datasheet.pdf |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 |
| ราคา: | โปร่ง |
| รายละเอียดการบรรจุ: | กล่องกระดาษ |
| เวลาการส่งมอบ: | 3 วันทำการ |
| เงื่อนไขการชำระเงิน: | ที/ที |
| สามารถในการผลิต: | 100 ชิ้น/วัน |
| ตรวจพบก๊าซ: | ไฮโดรเจนซัลไฟด์ (H2S) | หลักการตรวจจับ: | เกี่ยวกับเคมีไฟฟ้า |
|---|---|---|---|
| ช่วงการวัด: | 0 – 200 แผ่นต่อนาที | ปณิธาน: | 0.1 แผ่นต่อนาที |
| ความแม่นยำ: | ≤±2–5% เอฟเอส | ประเภทสัญญาณเตือน: | การสั่นสะเทือนแสงเสียง |
| เกรดการป้องกัน: | IP68 | อายุการใช้งานแบตเตอรี่: | สแตนด์บาย 2 ปี |
Wearable MiniMeta H2S Gas Detector With Sound Light Vibration Alarm, IP68 Waterproof
MiniMeta is an IECEx/ATEX/EMC certified single-gas detector specially designed for hydrogen sulfide (H2S) monitoring. Equipped with a high-precision electrochemical sensor, it provides a measuring range of 0–200 ppm and resolution of 0.1 ppm for accurate and stable detection. With an ultra-long battery life, IP68 waterproof/dustproof design, and triple alarm system, it provides reliable personal safety protection in harsh industrial environments.
Product Overview
MiniMeta is a compact, lightweight, and low-cost wearable single-gas detector for continuous real-time monitoring. It uses a high-stability electrochemical sensor to ensure fast response and reliable readings. The device supports automatic self-test, multi-parameter display (real-time value, TWA, STEL, MAX, MIN), and triple alarm to ensure operators can quickly identify dangers.
It features a replaceable battery and sensor, IP68 high protection grade, and up to 2 years of standby time, greatly reducing maintenance costs. It can work with the optional DKM-MiniMeta docking station for one-key bump test, calibration, data recording, and configuration management to simplify daily maintenance.

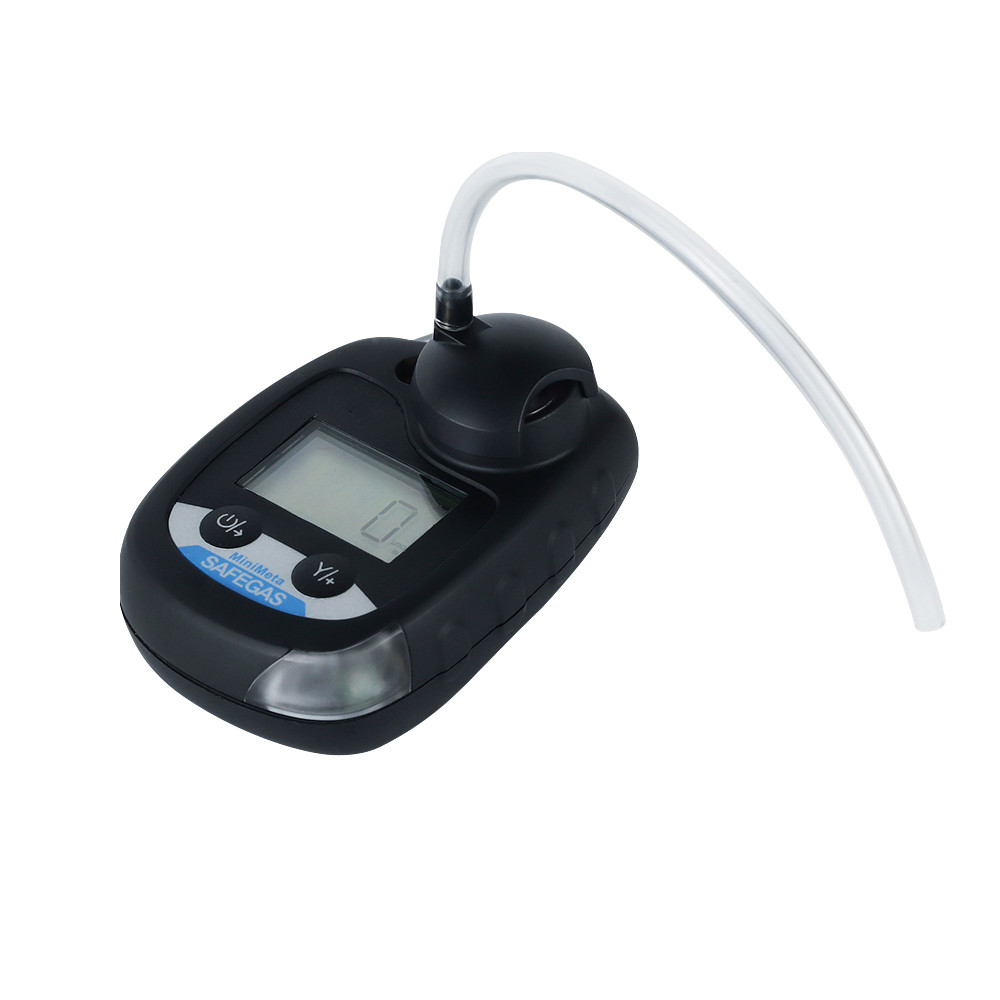

Product Pictures
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | MiniMeta |
| Detected Gas | Hydrogen Sulfide (H2S) |
| Detection Principle | Electrochemical |
| Measuring Range | 0 – 200 ppm |
| Resolution | 0.1 ppm |
| Accuracy | ≤±2–5% FS |
| Response Time (T90) | 15–30 s |
| Protection Grade | IP68 |
| Explosion-proof Grade | Ex ia IIC T4 Ga |
| Battery | 3.6V replaceable dry battery |
| Battery Life | 2 years standby |
| Alarm | 95dB buzzer + dual LED + vibration |
| Display | Gas type, concentration, battery, unit |
| Unit | ppm, mg/m³, %VOL |
| Working Temperature | -20℃ ~ 55℃ |
| Working Humidity | 0–95%RH (non condensing) |
| Dimensions | 90×60×33 mm |
| Weight | 125 g (with clip) |
Main Product Features
Optional DKM-MiniMeta Docking Station (Brief)
DKM-MiniMeta is an optional supporting station that can calibrate up to 4 MiniMeta detectors at the same time, store more than 100,000 records, support USB data export, and realize one-stop management.
Hydrogen Sulfide (H2S) Application Notes
H2S is a highly toxic gas commonly found in petroleum, mining, sewage treatment, and confined spaces. Continuous real-time monitoring effectively prevents poisoning and explosion risks.
Typical Applications
Standard Package List
FAQ
Q1: What gas does MiniMeta detect?
A: It detects Hydrogen Sulfide (H2S).
Q2: What is the measuring range and resolution?
A: 0–200 ppm, 0.1 ppm.
Q3: What is the detection principle?
A: Electrochemical sensor.
Q4: Does it need charging?
A: No, it uses a replaceable battery with 2-year standby life.
Q5: What is the protection grade?
A: IP68 waterproof & dustproof.
Q6: Is it explosion-proof?
A: Yes, Ex ia IIC T4 Ga.
Q7: What alarms does it have?
A: 95dB sound + dual LED + vibration.
Q8: Does it support self-test?
A: Yes, automatic self-test on power-on.
Q9: Can I use it with a docking station?
A: Yes, optional DKM-MiniMeta for calibration and data management.
Q10: What is the weight?
A: 125g.
