| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | Safegas |
| ได้รับการรับรอง: | ATEX/IECEx/EMC |
| หมายเลขรุ่น: | Micmeta |
| เอกสาร: | Micmeta Datasheet.pdf |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ยูนิต |
| ราคา: | โปร่ง |
| รายละเอียดการบรรจุ: | กล่องกระดาษ |
| เวลาการส่งมอบ: | 4 วันทำการ |
| เงื่อนไขการชำระเงิน: | ที/ที |
| สามารถในการผลิต: | 100 ชิ้น/วัน |
| ระดับการกันน้ำ: | IP66/IP68 | วิธีการทำงาน: | การแพร่กระจาย |
|---|---|---|---|
| ตรวจพบก๊าซ: | CO, H2S, O2, LEL (มาตรฐาน 4-in-1) | สี: | สีดำและสีแดง |
| เวลาตอบสนอง (T90): | ≤30วินาที | แสดง: | รหัสส่วนจอแสดงผล LCD |
| การจัดเก็บข้อมูล: | บันทึกข้อมูล 1,000 ชุด บันทึกเหตุการณ์ 100 ชุด | เวลาทำงาน: | สูงสุด 24 ชั่วโมงต่อการชาร์จหนึ่งครั้ง |

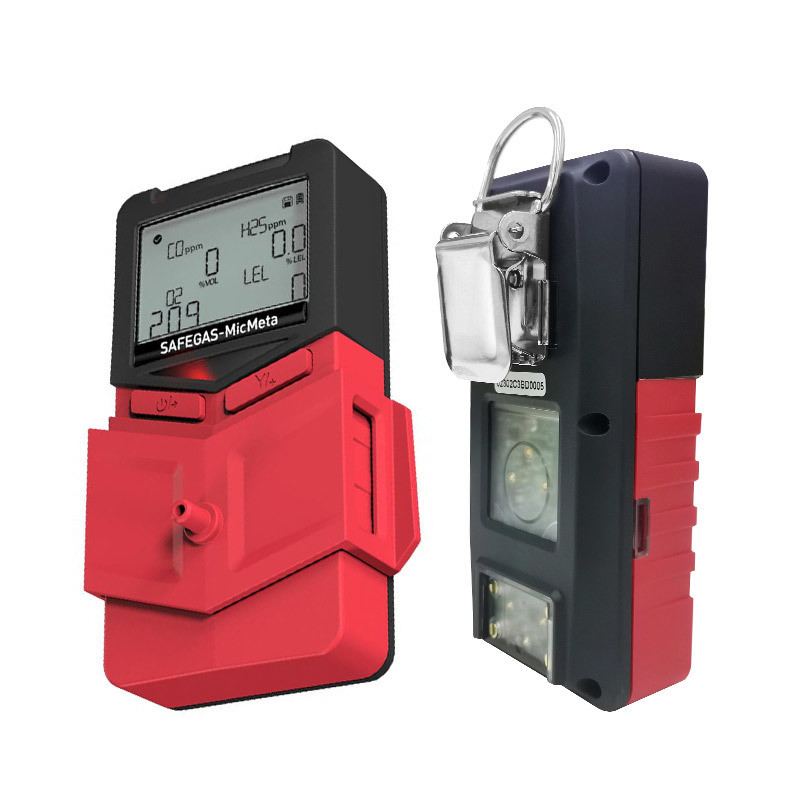

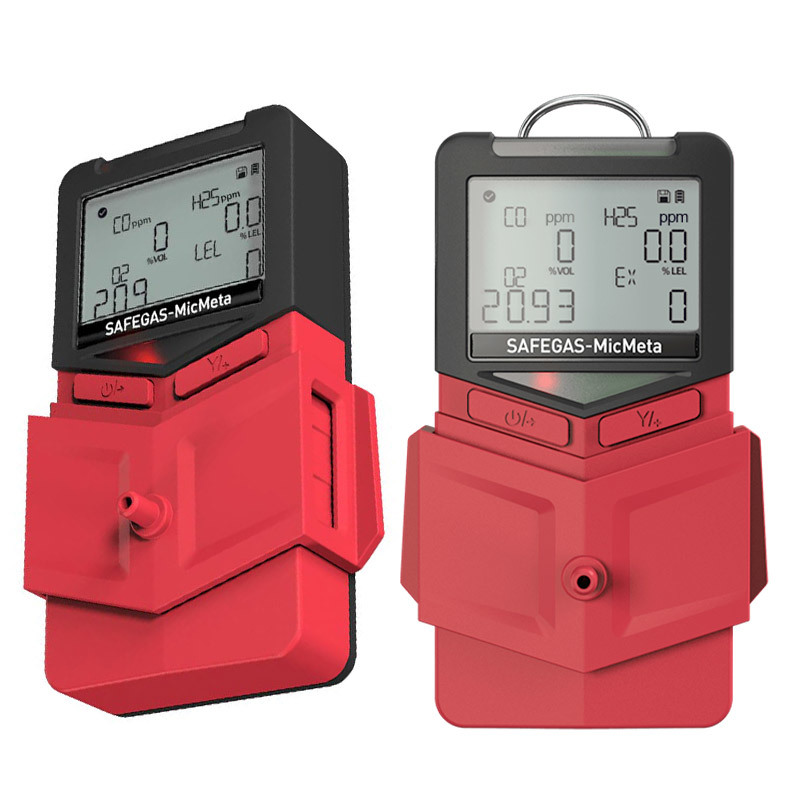

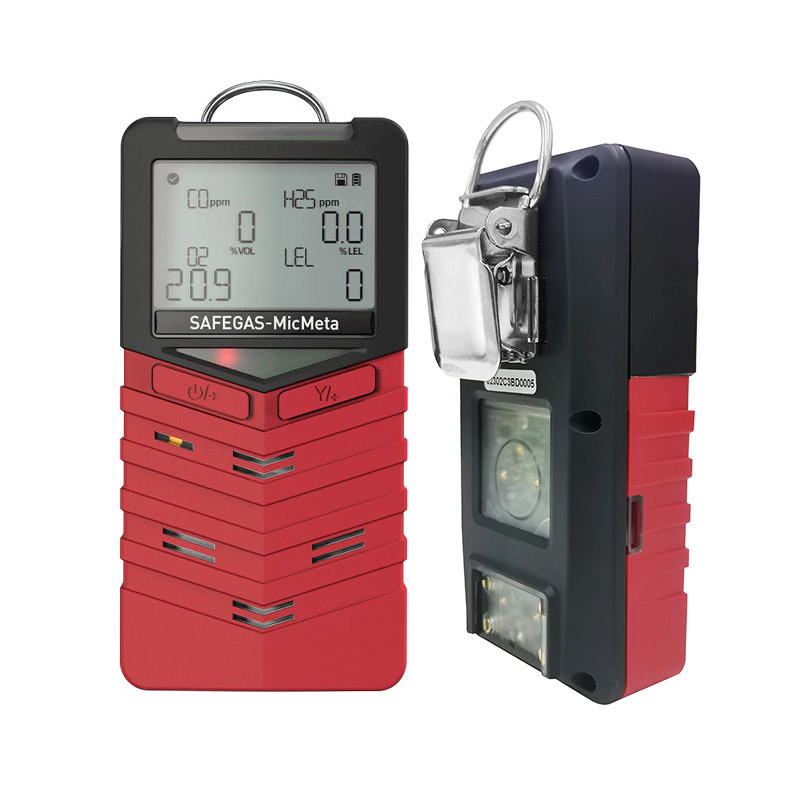

The MicMeta is an IECEx/ATEX/EMC certified wearable diffusion 4-gas detector designed for personal safety protection in high-risk environments. It utilizes electrochemical sensors for CO, H2S, O2 and catalytic combustion sensor for LEL to deliver stable and accurate monitoring. With its compact structure, diffusion sampling, IP66/IP68 protection, 1.5m drop resistance, and standard man down alarm, this instrument is ideal for mines, petroleum, chemical industry, confined spaces and other hazardous work environments.
| Parameter | Value |
|---|---|
| Model | MicMeta |
| Working Method | Diffusion |
| Detected Gases | CO, H2S, O2, LEL (Standard 4-in-1) |
| Detection Principle | Electrochemical (CO, H2S, O2); Catalytic Combustion (LEL) |
| Measuring Range | CO: 0-1000 ppm H2S: 0-100 ppm O2: 0-30%VOL LEL: 0-100%LEL |
| Resolution | CO: 1 ppm H2S: 1 ppm O2: 0.1%VOL LEL: 1%LEL |
| Response Time (T90) | ≤30S |
| Display | Segment code LCD |
| Data Record | 1000 data records; 100 event records |
| Alarm Mode | 95dB buzzer, vibration, flashing red indicators, alarm latching |
| Alarm Types | Man down alarm, low battery alarm, fault alarm, user-adjustable high/low alarms |
| Battery | 3.7V rechargeable lithium battery, 2300mAh |
| Working Time | Up to 24 hours |
| Charging Time | <6 hours |
| Protection Grade | IP66 / IP68 |
| Drop Resistance | 1.5 meters |
| Explosion-proof Grade | IECEx: Ex ia IIC T4 Ga, Ex ia I Ma ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma |
| Working Temperature | -20°C ~ 55°C |
| Working Humidity | 0-95%RH (non-condensing) |
| Working Pressure | 86~106Kpa |
| Dimensions | 45×58×116 mm |
| Weight | 240g (with battery) |
| Unit Switch | ppm / mg/m³ one-key switch |
| Wireless (Optional) | Bluetooth, Lora |
| Certifications | IECEx, ATEX, EMC |
Drop-resistant and waterproof design with IP66/IP68 protection and 1.5m drop resistance. Performs reliably in humid, dusty, and splash conditions, ensuring stable operation in complex industrial environments.
Built-in motion detection module automatically triggers sound, light and vibration alarms when the user is in an abnormal static state, providing effective protection for lone operators.
Automatically completes sensor self-test, zero calibration and system status detection after power-on, ensuring sensor effectiveness and reducing false alarms.
Stores 1000 data records and 100 event records, capturing concentration changes and alarm information. Compatible with docking stations for data export, facilitating safety management and compliance review.
2300mAh rechargeable lithium battery provides up to 24 hours of continuous operation with less than 6 hours charging time, supporting extended on-site work requirements.
Compact size (240g) with back clip for easy carrying. Segment LCD screen clearly displays real-time concentration, TWA, STEL, MAX and MIN values with intuitive interface.
Colorless, odorless, highly toxic gas from incomplete combustion. Found in mines, boilers, vehicle exhaust, and confined spaces. 0-1000ppm range with 1ppm resolution electrochemical sensor monitors low-concentration accumulation to prevent poisoning.
Highly toxic, flammable gas with rotten egg odor, present in sewage treatment, petroleum, mining, and chemical industries. 0-100ppm range with 1ppm resolution electrochemical sensor quickly responds to trace leakage.
Critical safety indicator: below 19.5%VOL causes suffocation risk, above 23.5%VOL increases combustion risk. 0-30%VOL range with 0.1%VOL high-resolution electrochemical sensor accurately monitors oxygen levels.
Represents lower explosive limit of flammable gases (methane, propane, etc.). Catalytic combustion sensor with 0-100%LEL range and 1%LEL resolution detects leakage before reaching dangerous concentrations.
Shenzhen YuanTe Technology Co., Ltd. (brand: Safegas) was established in 2010 and specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems. With over 16 years of industry expertise, the company serves sectors including oil & gas, chemicals, environmental protection, electronics, municipal engineering, agriculture, and household appliances.
All products are manufactured under ISO9001 and ISO45001 management systems, holding international certifications such as IECEx, ATEX, and EMC. With an annual production capacity of over 80,000 units, YuanTe Technology supplies gas detection solutions to customers worldwide.
