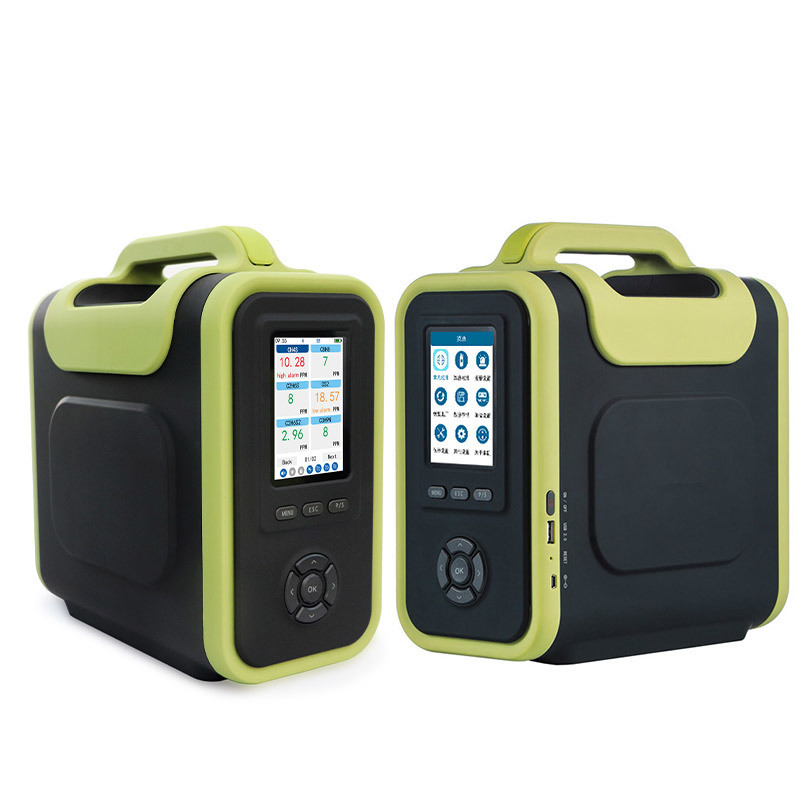

Precision Multi Gas Detector with Modular Internal Structure and 3.5-inch IPS LCD Screen for CO NO NO2 SO2 VOC O2 CO2 Detection

ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: SAFEGAS
ได้รับการรับรอง: Chinese EX certificate
หมายเลขรุ่น: Sky8000
จำนวนสั่งซื้อขั้นต่ำ: 1
ราคา: โปร่ง
รายละเอียดการบรรจุ: กล่องกระดาษ
เวลาการส่งมอบ: 10 วันทำการ
เงื่อนไขการชำระเงิน: ที/ที, เวสเทิร์นยูเนี่ยน
สามารถในการผลิต: 300 ชิ้นต่อเดือน
ข้อมูลรายละเอียด
อุณหภูมิ: -20°C~+50°C การรับประกัน: 12 เดือน
ความชื้น: 0~95%RH (ไม่มีการควบแน่น) สี: สีดำกับสีเขียว
พลัง: แบตเตอรี่ลิเธียมโพลิเมอร์ ข้อกำหนดโพรบ: จำเป็นต้องเลือกตามอุณหภูมิและความยาวโพรบ
วิธีการสุ่มตัวอย่าง: ปั๊มดูด น้ำหนัก: 3700 กรัม
การตรวจจับก๊าซ: CO NO NO2 SO2 VOC O2 CO2 ฟังก์ชั่นการพิมพ์: เป็นตัวเลือกด้วยเครื่องพิมพ์พกพาภายในหรือเครื่องพิมพ์บลูทู ธ ภายนอก

รายละเอียดสินค้า

Precision Pump Suction Flue Gas Analyzer Multi Gas Emission Detector
For Industrial Waste Gas Environmental Monitoring CO NO NO2 SO2 VOC O2 CO2
Product Overview
The SKY8000 is a portable gas analysis instrument widely used in industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, indoor air analysis and other applications. The analytical instrument can flexibly detect 1-18 kinds of gases; 1-3 modules can be selected, each module corresponds to one pump, and the internal structure is modularized to take separate air intake for the disturbing gas, effectively avoiding cross interference between gases.
Features a 3.5-inch high-definition IPS LCD color screen with 150 degree wide viewing angle, Chinese and English operation interface; fall alarm, password protection, safety reminder and other functions for safety upgrade; optional high temperature probe can monitor gas concentration in harsh high temperature and high humidity environments; large-capacity lithium battery provides long standby time; instrument casing is made of high-strength engineering materials with unique shape design and practical ergonomic operation.
Applications
  • Thermal power plant boiler flue gas real-time sampling detection
  • Chemical factory waste gas environmental protection inspection
  • Waste incineration plant tail gas multi-component concentration monitoring
  • Steel smelting workshop exhaust pollutant data recording analysis
  • Cement production kiln flue gas safety monitoring
  • Industrial paint spraying workshop waste gas emission compliance testing
  • And many more industrial applications
Product Images

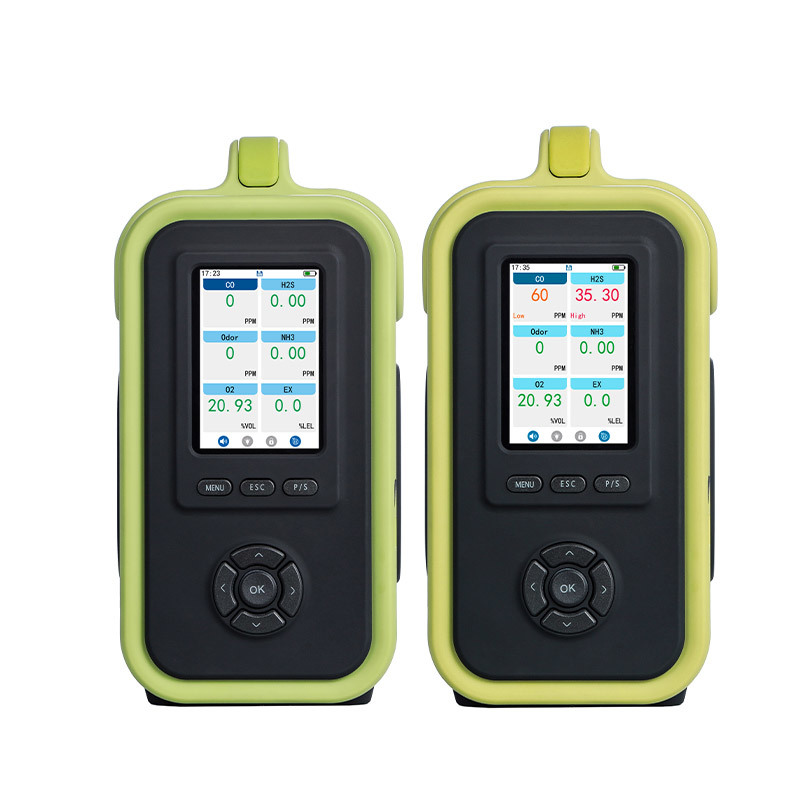

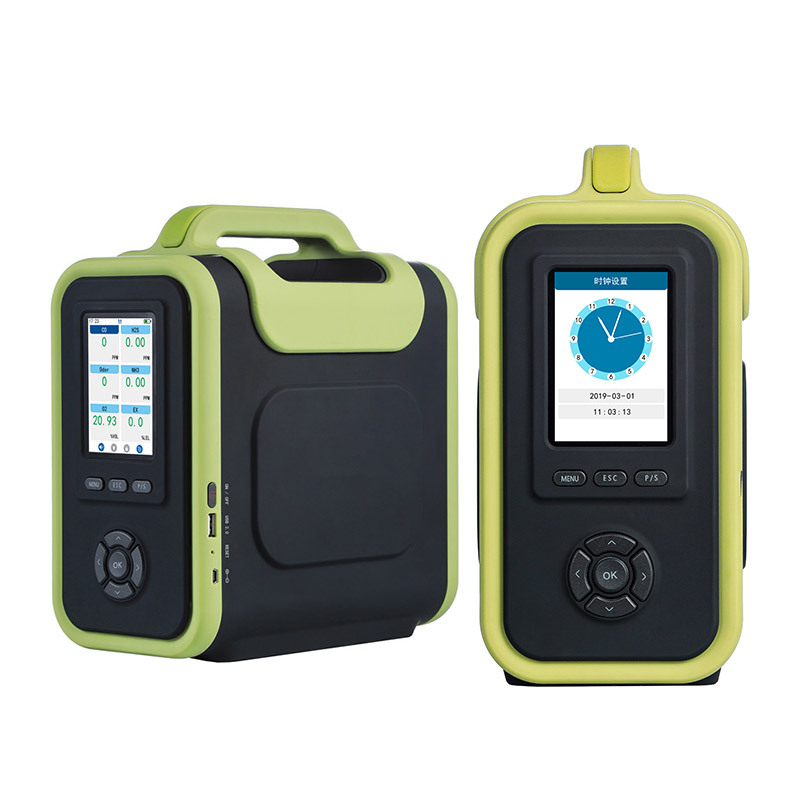

SKY8000 Gas Analyzer front view showing display and controls
SKY8000 Gas Analyzer side view with sampling probe
SKY8000 Gas Analyzer in carrying case with accessories

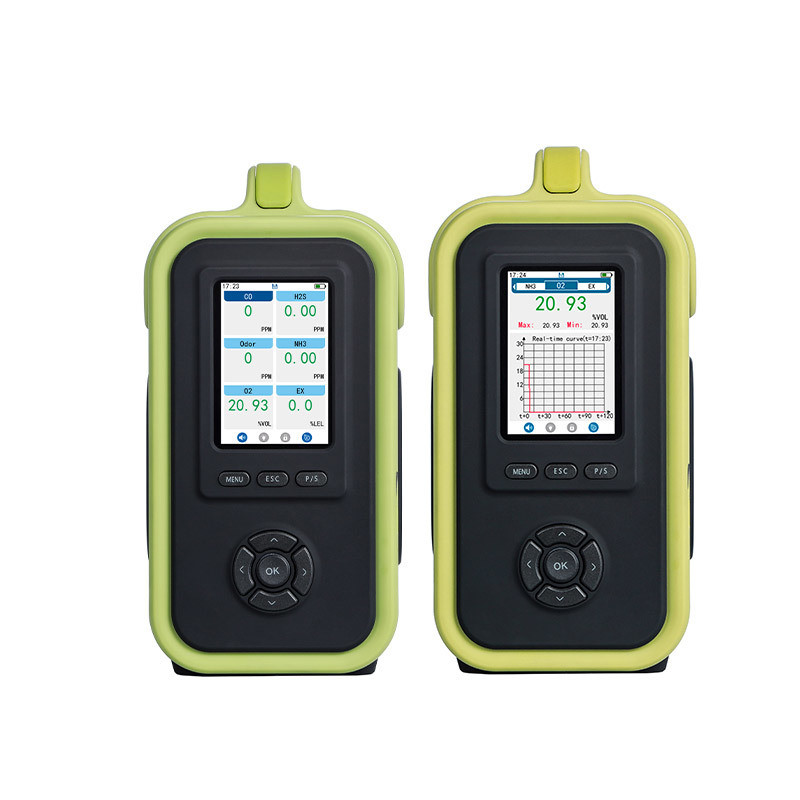

Close-up of SKY8000 display showing gas readings
SKY8000 Gas Analyzer internal modular components
SKY8000 in industrial monitoring application
Product Specifications
Sensors Specified according to application
Gas Detected CO, NO, NO2, SO2, VOC, O2, CO2
Measure Range Specified according to application
Resolution Specified according to application
Display Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status
Alarm Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data Storage Independent SD memory card, Max.32G, measurement data can be recorded automatically, customizable record time interval
Data Transmission and Download RS485 signal output, USB interface data transmission, with the upper computer software, can download storage, analyze and print data
Print Function (Optional) Optional with internal portable printer or external bluetooth printer
Print Content (Optional) Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.
Charger Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer)
Language Chinese/English
Wireless Network (Optional) Bluetooth
Network Frequency 2.4G high frequency
Wireless Transmission Distance Bluetooth is less than 10m
Probe Specifications The smoke environment must be equipped with a high temperature probe gun, which can be resistant to high temperatures of 600°C or 1000°C. The probe length can be 0.3m, 0.7m and 1m.
Product Advantages
  • Exterior Atmosphere, 3.5-inch High-definition Color Screen: Convenient carrying chassis handle design, heavy and stylish body with aviation wear-resistant materials, high resolution with wide viewing angle, user-friendly interface with easy interactive operation
  • Modular Internal Structure: Industry's first analytical instrument with modular internal structure and patents, up to three detection modules with each detecting up to six gases, independent modules with separate intake air to avoid cross interference
  • High Customizability: Up to 18 sensors can be selected to meet requirements of simultaneous detection and analysis of 18 gases
  • Flexible, Multi-pump System: Air supply system of up to three pumps with adjustable flow rates across ten different gears to meet different space environments
  • Multiple Display Modes Coexist: Support gas concentration data display and real-time curve display mode switching
  • Data Storage: Standard 8G SD memory card with continuous storage up to seven years at 5-second intervals, historical data viewing and export via USB
  • Multiple Security Protection: Fall alarm function, password protection, safety alerts, high and low alarm lock function
  • Powerful and User-friendly: PPM/mg/m³ unit switching, factory reset for sensors, Chinese/English display, timed shutdown, sensor overload protection, built-in thermal printer, wireless communication for real-time monitoring
Standard Accessories
  • One User manual
  • One certificate/warranty card
  • One 8G large capacity SD card (more capacity needs to be customized)
  • One charging adapter
  • One water trap filter
  • One intake sampling probe
  • One 1000mm hose
  • One non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant suitcase
Optional Accessories
  • Printer (built-in thermal printer) one
  • A set of high temperature flue gas detectors
Why Choose Safegas?
  • R&D team experience: over 25 years
  • Company certification: ISO9001, ISO45001
  • Product certification: IECEx (the only one in China), ATEX, CE
  • Delivery: 5-7 days
  • Yearly capacity: 80,000 units
  • Service: Professional sales staff provide 7*24 hours service
Safegas is a company that focuses on the design, production and sales of environmental monitoring equipment and systems for 16 years. With "gas detector" as the core product, we have completed production lines and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 16 years of rapid development, Safegas becomes the influential supplier for environmental monitoring equipment and system in the domestic and overseas market.
For years, Safegas always insisted on the management concept "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." With friendly, open, and strict corporate culture and standardized management, Safegas gathers a lot of talents and builds up the management team and R&D team. All the staff cooperates well in product development, production, and maintenance, and has a deep understanding of the concept of "customer-oriented", and runs the service spirit through the company operation and management, to win the trust and support from customers.
Depending on years of measurement experience and Safegas solutions, through independent research and development, cooperative development and learning overseas latest technology, Safegas's products are domestic advanced, and can compete with overseas brand. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
Safegas company certification and quality standards
Safegas manufacturing capabilities and production facilities
